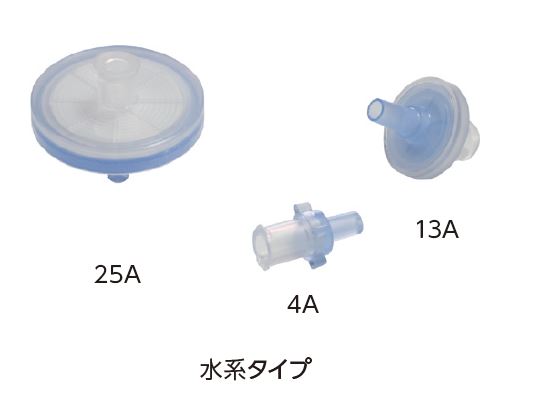

GL Chromatodisc Syringe Filter
GL Chromatodisc Syringe Filter for Hydrophilic/ Hydrophobic Samples
Hydrophilization treated PTFE can be used in filtration of not only aqueous but also nonaqueous solutions without prewetting , and up to 100 % aqueous acetonitrile.
Solvents that can be used include alcohols, ethers, esters, ketones, hexanes, and the like.
Specifications
|
Size
|
Filter diameter [mm]
|
Φ4
4 mm
|
Φ13
13 mm
|
Φ25
25 mm
|
|---|---|---|---|---|
|
Housing
|
Φ8 ×18 mm
8 mm O.D. × 18 mm
|
Φ18 ×22 mm
18 mm O.D. × 22 mm
|
Φ29 ×24 mm
29 mm O.D. × 24 mm
|
|
|
Housing material
|
PP（polypropylene）
|
|||
|
Sample size [mL]
|
≦ 1
|
≦ 0.5 - 10
|
≦ 3 - 50
|
|
|
Hold-UP Volume [μL]
|
≦10
|
≦30
|
≦100
|
|
|
Effective filtration area [cm2]
|
0.07
|
0.8
|
4
|
|
|
Maximum allowable operating pressure [MPa]
|
0.49
|
0.49
|
0.49
|
|
|
Inlet connection
|
Lure Rock
|
Lure Rock
|
Lure Rock
|
|
|
Outlet connection
|
Lure slip
|
Lure slip
|
Lure slip
|
|
GL Chromatodisc Syringe Filter for Hydrophilic / Hydrophobic Samples
| Description | Manufacturer P/N | Diameter | Pore Diameter | Qty. | Cat.No. |
|---|---|---|---|---|---|
| GL ChromatoDisk | 4P | 4mm | 0.45µm | 100pcs | 5040-28540 |
| GL ChromatoDisk | 13P | 13mm | 0.45µm | 100pcs | 5040-28541 |
| GL ChromatoDisk | 25P | 25mm | 0.45µm | 100pcs | 5040-28542 |
| GL ChromatoDisk | 13P | 13mm | 0.2µm | 100pcs | 5040-28551 |
| GL ChromatoDisk | 25P | 25mm | 0.2µm | 100pcs | 5040-28552 |
