InertSep / GL-Pak Accessories
InertSep / GL-Pak Accessories
Cartridge Adaptors
Cartridge Adaptors
PP adaptors for connecting with luer stop valves and SPE cartridges. Upper connecting port is luer tip type.
| Description | Qty. | Cat.No. |
|---|---|---|
| SPE Cartridge Adaptor for 1,3,6mL (PP) | 12pcs | 5010-60000 |
| SPE Cartridge Adaptor for 12,20mL (PP) | 12pcs | 5010-60001 |
| SPE Cartridge Adaptor for 60mL (PP) | 12pcs | 5010-60002 |
| SPE Cartridge LSC Adaptor (PP) | 12pcs | 5010-60004 |
Luer Stop Valve
Luer stop valve (PTFE)
The valve is connected to SPE cartridges or manifolds. And it’s valve is adjusted to control flow rate of the liquid that flow through it.
| Description | Size | Qty. | Cat.No. |
|---|---|---|---|
| Lure Stop Valve | Common | 12pcs | 5010-60010 |
Luer Control Valve (PP)
Luer control valve (PP)
Due to the risk of blank elution from PTFE, in the analysis of fluorine compounds (PFAS) such as PFOS and PFOA, use a luer flow control valve made of polypropylene is effective.
| Description | Qty. | Cat.No. |
|---|---|---|
| Luer Flow Control Valve (PP) | 10pcs | 6045-11000 |
Cap
Male luer cap
It is a polypropylene (PP) cap for SPE cartridges.
Male luer cap is a cap for polypropylene (PP) SPE cartridge. Female luer caps are used in the edge of a cartridge, and female luer caps are used in the edge of a luer device type cartridge such as mini type.
Female luer cap
| Description | Qty. | Cat.No. |
|---|---|---|
| Male Lure Cap | 50pcs | 5010-52015 |
| Female Lure Cap | 50pcs | 5010-52016 |

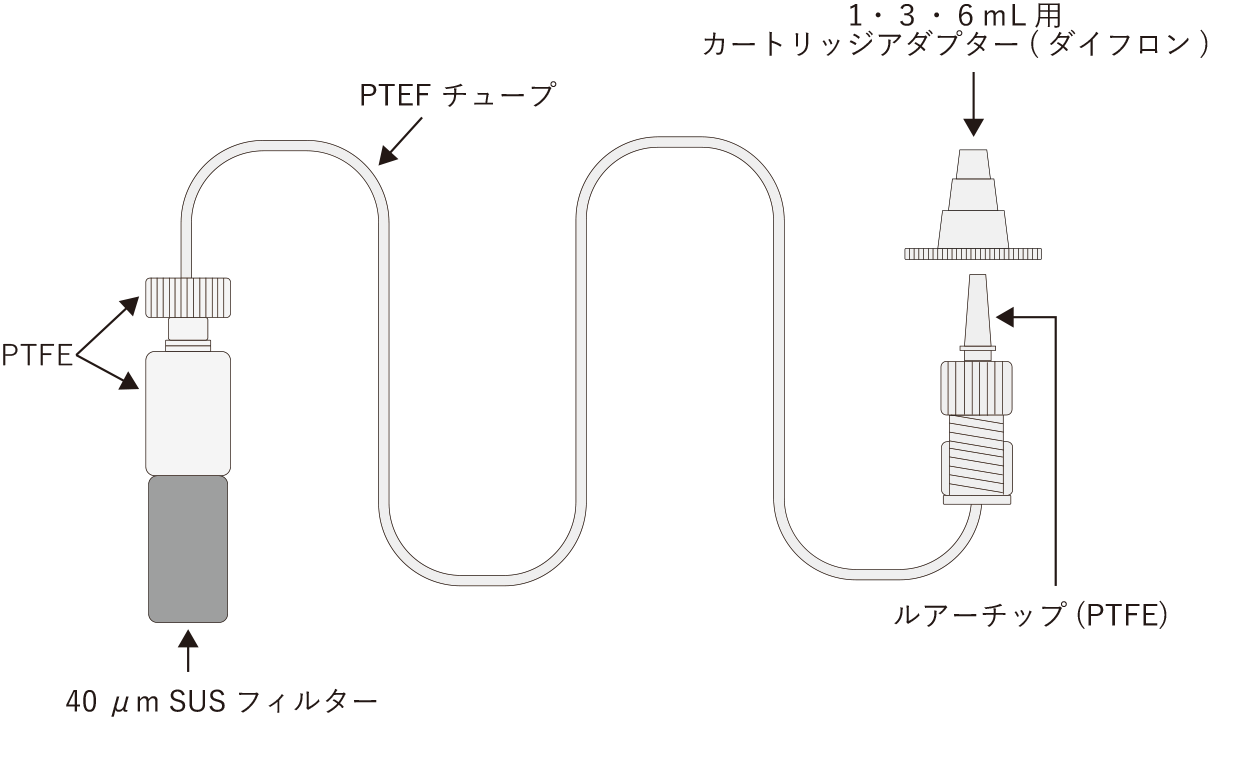

LS Tubing
LS tubing is a tubing that attached 40 μm diameter filter and luer tip type adaptor. When put through large amount of sample, this ideal for filtering samples or solvents being introduced into the SPE columns or cartridges. The length of this is 1 m. LS tubing 1, 6, 12 attaches cartridge connection adaptor (1 mL, 3 mL, 6 mL).
| Description | Specification | Qty. | Cat.No. |
|---|---|---|---|
| Ls Tubing 0 | ‐ | 1pc | 5010-50214 |
| Ls Tubing 1 | with Cartridge Connection Adapter | 1pc | 5010-50213 |
| Ls Tubing 6 | with Cartridge Connection Adapter | 6pcs | 5010-50212 |
| Ls Tubing 12 | with Cartridge Connection Adapter | 12pcs | 5010-50211 |
Connecter Tubing
Connecter Tubing is a 30 cm tubing attaching a male luer tip and a male luer tip in each side.
| Description | Qty. | Cat.No. |
|---|---|---|
| Connector Tubing | 1pc | 5010-52021 |
| Connector Tubing 5Ea | 5pcs | 5010-52022 |
Back-flush Adaptor
Male Luer Union for Backflush
For manually eluting the solid-phase extraction cartridge from the reverse direction, etc.
Female Luer Union for Backflush
| Description | Specification | Qty. | Cat.No. |
|---|---|---|---|
| Male Lure Union (PP) | Luer Tip Male on both Sides (PP) | 10pcs | 5010-52012 |
| Female Lure Union (PP) | Luer Tip Female on both Sides (PP) | 10pcs | 5010-52013 |
| Backflush Adaptor for SPE Cartridge | Luer Tip Female on both Sides (PTFE) | 5pcs | 5010-52011 |
