Shimadzu GC Packed Column Accessories
O-rings
P type O-ring
Heat-resistant silicone:
Flexible until 280 °C. Curing begins at about 300 °C. Little adhesion to the column.
Red silicone:
Wide range heat-resistance from -60 °C to + 230 °C. Not strong mechanically. Decomposed with high temperature steam.
| Description | Material | Size (a×b) | Qty. | Cat.No. |
|---|---|---|---|---|
| P-4 | Red Silicon | 3.8×1.9 | 20pcs | 3007-11404 |
| P-5 | Red Silicon | 4.8×1.9 | 20pcs | 3007-11405 |
Note) P-4 is for 5 mm I.D. glass columns, P-5 is for 6 mm I.D. glass columns
Qty.: 20 pcs/pk
liners
Insert liners for packed columns
×→Not available
| Description | Shimadzu P/N（refer.） | Remark | Inert Treatment | Blister Pack | Qty. | Cat.No. |
|---|---|---|---|---|---|---|
| Liner | 221-14093 | for 7A, 9A～16A I.D.3mm | × | × | 2pcs | 3001-16115 |
| Liner | 221-14094 | for 7A, 9A～16A I.D.2.6mm | × | × | 2pcs | 3001-16117 |
| Liner | 221-41484 | for 17A Packed Column | × | × | 1pc | 3001-16119 |

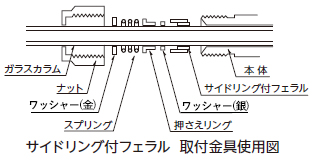

Ferrules with Side Ring
It is useful when an O ring burns.
| Description | Manufacturer P/N | Qty. | Cat.No. |
|---|---|---|---|
| SHIMADZU Installation Tool | GI-5SB | 1/pk | 3001-21002 |
| Graphite Ferrule | GI-5S | 10pcs | 3007-14152 |
SUS Column Adaptors and Packing
Insert liners for packed columns
| Description | Qty. | Cat.No. |
|---|---|---|
| SUS Column Adapter Inj Side | 1pc | 3001-67002 |
| SUS Column Adapter DET Side (FID) | 1pc | 3001-67001 |
| Column Packing Aluminum | 100pcs | 3007-16201 |
