Fittings
Swagelok Type SUS Fittings (Male Connectors)

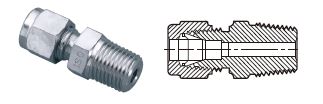

Male Connectors
ISO Type
(PT Type)
| Description | Applicable Tubing O.D. | Manufacturer P/N | Material | Screw Standard | Qty. | Cat.No. |
|---|---|---|---|---|---|---|
| Stainless Fitting SL Typ Male Connector (ISO Type) | 1/16in. | 1/16CM2 | SUS316 | R1/8 | 1pc | 3006-43011 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 1/8in. | 1/8CM2 | SUS316 | R1/8 | 1pc | 3006-43021 |
| Swagelok Type Fitting Male Connector | 1/8SWL | 1/8CM4 | SUS316 | R1/4(1/4PT オス) | 1pc | 3006-43022 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 1/4in. | 1/4CM2 | SUS316 | R1/8 | 1pc | 3006-43041 |
| Swagelok Type Fitting Male Connector | 1/4SWL | 1/4CM4 | SUS316 | R1/4(1/4PT オス) | 1pc | 3006-43042 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 3/8in. | 3/8CM4 | SUS316 | R1/4 | 1pc | 3006-43062 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 2mm | 2CM2 | SUS316 | R1/8 | 1pc | 3006-41521 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 3mm | 3CM2 | SUS316 | R1/8 | 1pc | 3006-41531 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 3mm | 3CM4 | SUS316 | R1/4 | 1pc | 3006-41532 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 4mm | 4CM2 | SUS316 | R1/8 | 1pc | 3006-41541 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 4mm | 4CM4 | SUS316 | R1/4 | 1pc | 3006-41542 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 6mm | 6CM2 | SUS316 | R1/8 | 1pc | 3006-41561 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 6mm | 6CM4 | SUS316 | R1/4 | 1pc | 3006-41562 |
| Stainless Fitting SL Typ Male Connector (ISO Type) | 8mm | 8CM4 | SUS316 | R1/4 | 1pc | 3006-41582 |
NPT Threads (National pipe threads)
| Description | Applicable Tubing O.D. | Manufacturer P/N | Material | Screw Standard | Qty. | Cat.No. |
|---|---|---|---|---|---|---|
| Stainless Fitting SL Typ Male Connector (NPT Type) | 1/16in. | 1/16CM2N | SUS316 | NPT1/8 | 1pc | 3006-43016 |
| Stainless Fitting SL Typ Male Connector (NPT Type) | 1/8in. | 1/8CM2N | SUS316 | NPT1/8 | 1pc | 3006-43026 |
| Stainless Fitting SL Typ Male Connector (NPT Type) | 1/8in. | 1/8CM4N | SUS316 | NPT1/4 | 1pc | 3006-43027 |
| Stainless Fitting SL Typ Male Connector (NPT Type) | 1/4in. | 1/4CM2N | SUS316 | NPT1/8 | 1pc | 3006-43046 |
| Stainless Fitting SL Typ Male Connector (NPT Type) | 1/4in. | 1/4CM4N | SUS316 | NPT1/4 | 1pc | 3006-43047 |
| Stainless Fitting SL Typ Male Connector (NPT Type) | 3mm | 3CM2N | SUS316 | NPT1/8 | 1pc | 3006-41536 |
| Stainless Fitting SL Typ Male Connector (NPT Type) | 3mm | 3CM4N | SUS316 | NPT1/4 | 1pc | 3006-41537 |
| Stainless Fitting SL Typ Male Connector (NPT Type) | 6mm | 6CM2N | SUS316 | NPT1/8 | 1pc | 3006-41566 |
| Stainless Fitting SL Typ Male Connector (NPT Type) | 6mm | 6CM4N | SUS316 | NPT1/4 | 1pc | 3006-41567 |
Note) Use seal tape for taper thread.
