Tubing

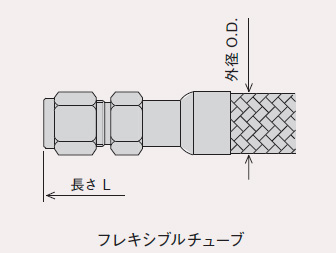

Flexible Stainless Steel Tubing
This is a flexible tube of 100 mm in Minimum bending radius and can be used for taking out the liquid nitrogen from the reservoir or as a flexible tubes which absorbs vibration.
SUS Flexible Tubing
| O.D. | Length | Manufacturer P/N | Hose O.D. | Max. Operating Pressure | Qty. | Cat.No. |
|---|---|---|---|---|---|---|
| 10.7mm | 1m | MHM4-4D4D-1-L1000 | 1/4" | 12.6MPa | 1pc | 3004-40000 |
| 10.7mm | 2m | MHM4-4D4D-1-L2000 | 1/4" | 12.6MPa | 1pc | 3004-40001 |
| 16.5mm | 1m | MHM6-6D6D-1-L1000 | 3/8" | 12.6MPa | 1pc | 3004-40002 |
| 16.5mm | 2m | MHM6-6D6D-1-L2000 | 3/8" | 12.6MPa | 1pc | 3004-40003 |
Note) Both connection size: 1/4 inch Swagelok or 3/8 inch Swagelok.
Please contact us for other size and connection type.
