InertCap Series

InertCap 5

InertCap 5 is a low polar column bonded 5 % diphenyl – 95 % dimethylpolysiloxane. InertCap 5 is an optimal first choice column for a variety of general analyses such as pesticides and volatile compounds etc.

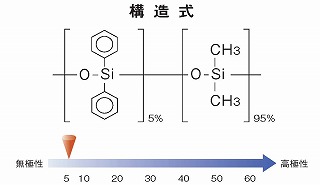

5 % Diphenyl - 95 % Dimethylpolysiloxane

USP Phase G27

Low Polarity

Cross-Linked

Suitable to general analysis, halogen compounds, Phenols, pesticides and PCBs analysis

Equivalents : DB-5, HP-5, Rtx-5, CP-Sil 8CB, SPB-5

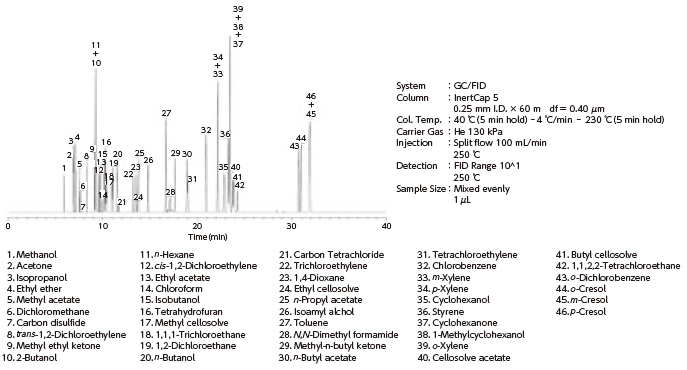

46 Organic Solvents

InertCap 5

I.D.	Length	Film Thickness	Max. Temperature	Qty.	Cat.No.
0.18mm	15m	0.18µm	iso.325℃-prog.350℃	1pc	1010-18021
0.18mm	15m	0.28µm	iso.325℃-prog.350℃	1pc	1010-18022
0.18mm	20m	0.18µm	iso.325℃-prog.350℃	1pc	1010-18031
0.18mm	20m	0.28µm	iso.325℃-prog.350℃	1pc	1010-18032
0.25mm	15m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18122
0.25mm	15m	0.4µm	iso.325℃-prog.350℃	1pc	1010-18123
0.25mm	30m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18142
0.25mm	30m	0.4µm	iso.325℃-prog.350℃	1pc	1010-18143
0.25mm	30m	1.0µm	iso.300℃-prog.320℃	1pc	1010-18145
0.25mm	30m	1.5µm	iso.300℃-prog.320℃	1pc	1010-18146
0.25mm	60m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18162
0.25mm	60m	0.4µm	iso.325℃-prog.350℃	1pc	1010-18163
0.25mm	60m	1.5µm	iso.300℃-prog.320℃	1pc	1010-18166
0.32mm	15m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18222
0.32mm	15m	0.4µm	iso.325℃-prog.350℃	1pc	1010-18223
0.32mm	30m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18242
0.32mm	30m	0.4µm	iso.325℃-prog.350℃	1pc	1010-18243
0.32mm	30m	1.0µm	iso.300℃-prog.320℃	1pc	1010-18245
0.32mm	60m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18262
0.32mm	60m	0.4µm	iso.325℃-prog.350℃	1pc	1010-18263
0.53mm	15m	1.0µm	iso.300℃-prog.320℃	1pc	1010-18425
0.53mm	15m	1.5µm	iso.300℃-prog.320℃	1pc	1010-18426
0.53mm	15m	2.0µm	iso.300℃-prog.320℃	1pc	1010-18427
0.53mm	15m	3.0µm	iso.260℃-prog.280℃	1pc	1010-18428
0.53mm	15m	5.0µm	iso.260℃-prog.280℃	1pc	1010-18429
0.53mm	30m	1.0µm	iso.300℃-prog.320℃	1pc	1010-18445
0.53mm	30m	1.5µm	iso.300℃-prog.320℃	1pc	1010-18446
0.53mm	30m	2.0µm	iso.300℃-prog.320℃	1pc	1010-18447
0.53mm	30m	3.0µm	iso.260℃-prog.280℃	1pc	1010-18448
0.53mm	30m	5.0µm	iso.260℃-prog.280℃	1pc	1010-18449
0.53mm	50m	5.0µm	iso.260℃-prog.280℃	1pc	1010-18459
0.53mm	60m	2.0µm	iso.300℃-prog.320℃	1pc	1010-18467

Note) 5 inch cage is available on request.

InertCap 5 ProGuard

Capillary columns (Built-in Guard Column)

I.D.	Length	Film Thickness	Guard Column Length	Max. Temperature	Qty.	Cat.No.
0.25mm	30m	0.25µm	2ｍ	iso.325℃-prog.350℃	1pc	1010-18172
0.25mm	30m	0.25µm	5ｍ	iso.325℃-prog.350℃	1pc	1010-18173
0.25mm	30m	0.25µm	10ｍ	iso.325℃-prog.350℃	1pc	1010-18174

Note) 5 inch basket is available on request.
