InertCap series
InertCap 624
InertCap 624 is a medium polar column bonded 6 % cyanopropylphenyl and 94 % dimethylpolysiloxane designed for VOC analysis. InertCap 624 is optimal for the analysis of “acetaldehyde and methanol in ethanol” defined in the Japanese Pharmacopeia Fifteenth Edition.

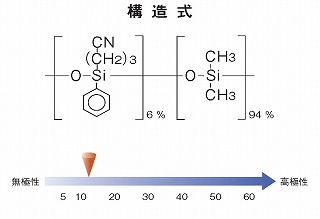

- 6 % Cyanopropylphenyl - 94 % Dimethylpolysiloxane
- USP Phase G43
- Medium Polarity
- Cross-Linked
- Suitable for VOCs and alcohol analysis
- Equivalents : DB-624, HP-VOC, Rtx-624, VF-624ms

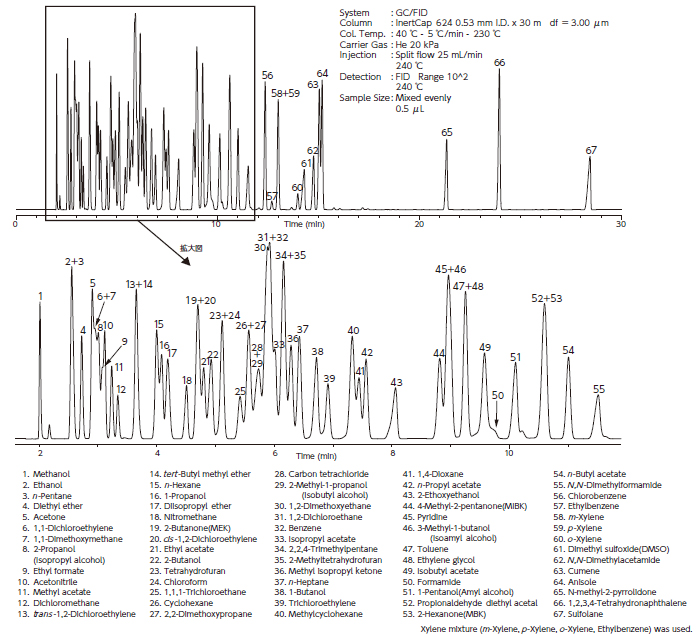

Residual Solvents in Pharmaceuticals
Inertcap 624
| I.D. | Length | Film Thickness | Max. Temperature | Qty. | Cat.No. |
|---|---|---|---|---|---|
| 0.18mm | 20m | 1.0µm | iso.260℃-prog.260℃ | 1pc | 1010-14535 |
| 0.18mm | 40m | 1.0µm | iso.260℃-prog.260℃ | 1pc | 1010-14555 |
| 0.25mm | 30m | 1.4µm | iso.260℃-prog.260℃ | 1pc | 1010-14646 |
| 0.25mm | 60m | 1.4µm | iso.260℃-prog.260℃ | 1pc | 1010-14666 |
| 0.32mm | 30m | 1.8µm | iso.260℃-prog.260℃ | 1pc | 1010-14747 |
| 0.32mm | 30m | 3.0µm | iso.260℃-prog.260℃ | 1pc | 1010-14748 |
| 0.32mm | 60m | 1.8µm | iso.260℃-prog.260℃ | 1pc | 1010-14767 |
| 0.53mm | 30m | 3.0µm | iso.260℃-prog.260℃ | 1pc | 1010-14948 |
| 0.53mm | 75m | 3.0µm | iso.260℃-prog.260℃ | 1pc | 1010-14978 |
Note) 5 inch cage is available on request.
