InertCap Series

InertCap 5HT

InertCap 5HT is a low-polarity, high-temperature column bonded with 5% Diphenyl (equiv.) – Dimethylpolysilphenylene siloxane. It is specially treated for operation up to 400 °C using high-temperature polyimide-coated fused silica tubing, allowing for the elution of high-boiling-point compounds and achieving excellent peaks.

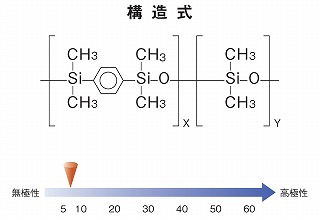

  • 5 % Diphenyl (equiv.) – Dimethylpolysilphenylene siloxane
  • USP Phase G27
  • Low Polarity
  • Cross-Linked
  • Maximum temperature is 400°C
  • Equivalents : DB-5ht, HP-5ht, VF-5ht, Rxi-5HT, ZB-5HT

I.D.
Length
Film Thickness
Max. TemperatureQty.Cat.No.
0.25mm15m0.10µmprog.400℃1pc1010-90921
0.25mm30m0.10µmprog.400℃1pc1010-90922
0.25mm15m0.25µmprog.400℃1pc1010-90923
0.25mm30m0.25µmprog.400℃1pc1010-90925
0.32mm30m0.10µmprog.400℃1pc1010-90928
0.32mm30m0.25µmprog.400℃1pc1010-90929
0.32mm10m0.10µmprog.400℃1pc1010-90930
0.32mm15m0.10µmprog.400℃1pc1010-90931
0.32mm15m0.25µmprog.400℃1pc1010-90933

InertCap 5MS ProGuard

Capillary columns (Built-in Guard Column)

I.D.
Length
Film Thickness
Max. TemperatureQty.Cat.No.
0.25mm15m0.25µmprog.400℃1pc1010-90924
0.25mm30m0.25µmprog.400℃1pc1010-90926
0.32mm15m0.10µmprog.400℃1pc1010-90932
0.32mm30m0.10µmprog.400℃1pc1010-90935
