SPE Spin Columns
MonoSpin Ion Exchange Columns (SAX, SCX, C18-AX, C18-CX, CBA)

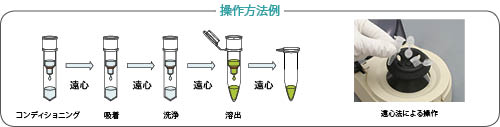

MonoSpin is a monolithic SPE column excellent for the small volume sample with an easy and quick operation by centrifuge.
Features
- Easy-to-Operate
- High Throughput and Rapid Operation for Biological Sample
- Ideal for Small Sample Volumes
- Selective Purification/Enrichment by Wide Various Functional Groups
![](/product/spe_columns/spin_column/eap3fl0000002j9c-img/Fig22-25.jpg)
Functional Group
MonoSpin SAX
![](/product/spe_columns/spin_column/eap3fl0000002j9c-img/monospinsax.jpg)
Bounded with trimethylaminopropyl combining both strong anion exchange & weak hydrophobic interaction. Optimal for the extraction of acidic drugs.
MonoSpin SCX
![](/product/spe_columns/spin_column/eap3fl0000002j9c-img/monospinscx.jpg)
Bounded with benzenesulfonic acid combining both strong cation exchange & hydrophobic interaction. Optimal for the extraction of basic drugs.
MonoSpin C18-AX
![](/product/spe_columns/spin_column/eap3fl0000002j9c-img/monospinc18-ax.jpg)
Bounded with octadecyl and trimethylaminopropyl, a mix mode type. Delivers great retention for high salt concentrated serum samples. Optimal for the recovery of acidic drugs.
MonoSpin C18-CX
![](/product/spe_columns/spin_column/eap3fl0000002j9c-img/monospinc18-cx.jpg)
Bounded with octadecyl and benzene sulfonic acid combining both ion exchange & hydrophobic interaction. Optimal for dissociated basic drug in biological samples. Delivers higher cleanup efficiency compound to C18 or SCX.
MonoSpin CBA
![](/product/spe_columns/spin_column/eap3fl0000002j9c-img/monospincba.jpg)
Bounded with carboxyl acid combining both weak cation exchange. Optimal for the extraction of basic drugs.
Configurations
S type: Spin Column
![](/product/spe_columns/spin_column/eap3fl0000002j9c-img/monospins.jpg)
Sample volume: up to 800 μL
Eluent volume: 50 μL - 800 μL
Spin Column is used setting with 1.5 mL and 2 mL micro tubes.
L Type: Large Volume Reservoir
![](/product/spe_columns/spin_column/eap3fl0000002j9c-img/monospinl.jpg)
Sample Volume: up to 8 mL
Eluent Volume: 0.5 mL - 8 mL
Large Volume Reservoir is used setting 50 mL centrifuge tube.
96-well Plate
![](/product/spe_columns/spin_column/eap3fl0000002j9c-img/96Well.jpg)
Note) Reservoir shape is different upon the type of the columns.
MonoSpin Ion Exchange Columns
Funcational Group | Format | Qty. | Cat.No. |
---|---|---|---|
SAX | S Type | 50pcs | 5010-21720 |
SAX | S Type | 100pcs | 5010-21721 |
SAX | L Type | 30pcs | 7510-11321 |
SCX | S Type | 50pcs | 5010-21725 |
SCX | S Type | 100pcs | 5010-21726 |
SCX | L Type | 30pcs | 7510-11322 |
C18-AX | S Type | 50pcs | 5010-21735 |
C18-AX | S Type | 100pcs | 5010-21736 |
C18-CX | S Type | 50pcs | 5010-21731 |
C18-CX | S Type | 100pcs | 5010-21732 |
CBA | S Type | 50pcs | 5010-21729 |
CBA | S Type | 100pcs | 5010-21730 |
CBA | L Type | 30pcs | 7510-11324 Discontinued |
SAX | 96well Type | 1pc | 5010-21903 |
SCX | 96well Type | 1pc | 5010-21904 |
CBA | 96well Type | 1pc | 5010-21906 |
C18-CX | 96well Type | 1pc | 5010-21907 |
C18-AX | 96well Type | 1pc | 5010-21908 |
Note) The MonoSpin contains the same number of collection tubes (1.5 mL) and waste liquid tubes (2 mL). The MonoSpin L does not have any collection tubes nor waste liquid tubes. Prepare a 50 mL centrifuge tube separately.
